Jeu tetris arduino nano
Sommaire
jeu Tetris avec un Arduino NANO
Inspiration
Je me suis inspiré de 2 travaux, celui de Laurent Marchal à l'UBO open factory ainsi que celui de Prathamesh Barik sur circuitdigest https://circuitdigest.com/microcontroller-projects/creating-tetris-game-with-arduino-and-oled-display
l'idée est de créer un jeu de Tetris en utilisant un écran OLED et un Arduino NANO
matériel
- Arduino NANO et son câble
- 4 boutons poussoir
- un écran OLED
- un buzzer
- câbles
- embases à souder
- plaques de prototypages
- batterie

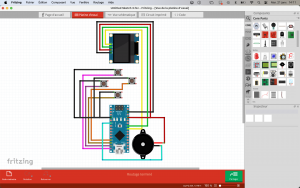

Schéma de câblage
Point de vigilance
Dans un premier temps faire les câblages à vide sur une breadboard, puis une fois tout est ok faire les soudures pour un projet qui tienne, j'ai utilisé une planque de prototypage qui permet de souder les masses et l'alimentation sur les côtés et j'ai utilisé des embases afin de pouvoir changer d'Arduino " au cas où ".

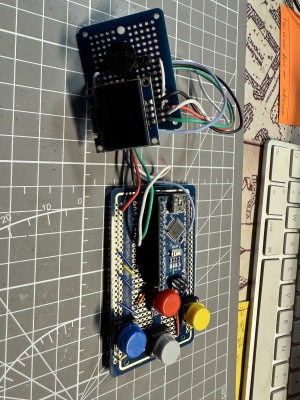

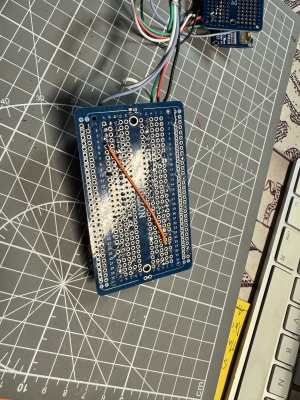

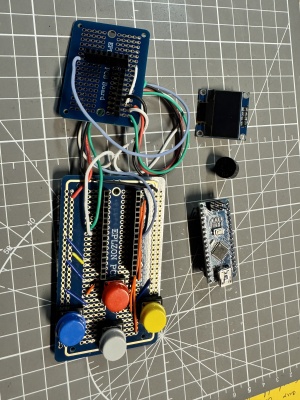

| schema | 1 | 2 | 3 | ||
|---|---|---|---|---|---|
Code
Point de vigilance
faire attention au emplacement des boutons poussoirs; au moment du televersement attention a bien mettre la carte , le port COM
Fichier:Code-tetris-ok-jan-25-arduino-nano.ino
1
2 #include <Wire.h>
3 #include <Adafruit_GFX.h>
4 #include <Adafruit_SSD1306.h>
5 #define WIDTH 64 // OLED display width, in pixels
6 #define HEIGHT 128 // OLED display height, in pixels
7 Adafruit_SSD1306 display(128, 64, &Wire, -1);
8 static const unsigned char PROGMEM mantex_logo [] = {
9 0x00, 0x00, 0x18, 0x06, 0x01, 0xc0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
10 0x00, 0x00, 0x3c, 0x0f, 0x03, 0xe0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
11 0x00, 0x00, 0x3e, 0x0f, 0x83, 0xe0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
12 0x00, 0x00, 0x3e, 0x0f, 0x83, 0xe0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
13 0x00, 0x00, 0x3e, 0x0f, 0x83, 0xe0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
14 0x00, 0x00, 0x3e, 0x0f, 0x83, 0xe0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
15 0x00, 0x00, 0x3e, 0x0f, 0x83, 0xe0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
16 0x00, 0x00, 0x3e, 0x0f, 0x83, 0xe0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
17 0x00, 0x00, 0xff, 0xff, 0xff, 0xf0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
18 0x00, 0x03, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
19 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
20 0x00, 0x1f, 0xff, 0xff, 0xff, 0xff, 0x80, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
21 0x00, 0x3f, 0x80, 0x00, 0x00, 0x0f, 0xc0, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
22 0x00, 0x3e, 0x00, 0x00, 0x00, 0x07, 0xe0, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
23 0x00, 0x7c, 0x00, 0x00, 0x00, 0x01, 0xe0, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
24 0x00, 0x78, 0x7f, 0xff, 0xff, 0xe1, 0xf0, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
25 0x00, 0xf8, 0xff, 0xff, 0xff, 0xf0, 0xf0, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
26 0x00, 0xf1, 0xff, 0xff, 0xff, 0xf8, 0xf0, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
27 0x00, 0xf1, 0xff, 0xff, 0xff, 0xfc, 0xf8, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
28 0x7f, 0xf1, 0xff, 0x0f, 0xff, 0xfc, 0xff, 0xf0, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
29 0xff, 0xf1, 0xfc, 0x01, 0xff, 0xfc, 0xff, 0xf0, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
30 0xff, 0xf1, 0xf0, 0x00, 0xff, 0xfc, 0xff, 0xf0, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
31 0x7f, 0xf1, 0xf0, 0x00, 0x7f, 0xfc, 0xff, 0xf0, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
32 0x01, 0xf1, 0xe0, 0x70, 0x3f, 0xfc, 0xf8, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
33 0x00, 0xf1, 0xe1, 0xf8, 0x3f, 0xfc, 0xf8, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
34 0x00, 0xf1, 0xe1, 0xff, 0xff, 0xfc, 0xf8, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
35 0x00, 0xf1, 0xe1, 0xff, 0xff, 0xfc, 0xf8, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
36 0x00, 0xf1, 0xc1, 0xff, 0xff, 0xfc, 0xf8, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
37 0x00, 0xf1, 0xe1, 0xe0, 0x07, 0xfc, 0xf8, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
38 0x7f, 0xf1, 0xe1, 0xe0, 0x01, 0xfc, 0xff, 0xf0, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
39 0xff, 0xf1, 0xe1, 0xe0, 0x00, 0xfc, 0xff, 0xf0, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
40 0xff, 0xf1, 0xe0, 0xe3, 0xf8, 0x7c, 0xff, 0xf0, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
41 0x7f, 0xf1, 0xe0, 0x63, 0xfc, 0x7c, 0xff, 0xf0, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
42 0x3f, 0xf1, 0xf0, 0x23, 0xfc, 0x3c, 0xff, 0xe0, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
43 0x00, 0xf1, 0xf8, 0x23, 0xfc, 0x3c, 0xf8, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
44 0x00, 0xf1, 0xff, 0x63, 0xfc, 0x3c, 0xf8, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
45 0x00, 0xf1, 0xff, 0xe3, 0xfc, 0x3c, 0xf8, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
46 0x00, 0xf1, 0xff, 0xe3, 0xfc, 0x7c, 0xf8, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
47 0x00, 0xf1, 0xff, 0xe3, 0xf8, 0x7c, 0xf8, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
48 0x7f, 0xf1, 0xff, 0xe1, 0xf0, 0x7c, 0xff, 0xe0, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
49 0xff, 0xf1, 0xff, 0xe0, 0x00, 0xfc, 0xff, 0xf0, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
50 0xff, 0xf1, 0xff, 0xe0, 0x03, 0xfc, 0xff, 0xf0, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
51 0xff, 0xf1, 0xff, 0xe0, 0x1f, 0xfc, 0xff, 0xf0, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
52 0x7f, 0xf1, 0xff, 0xff, 0xff, 0xfc, 0xff, 0xe0, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
53 0x00, 0xf1, 0xff, 0xff, 0xff, 0xf8, 0xf0, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
54 0x00, 0xf0, 0xff, 0xff, 0xff, 0xf8, 0xf0, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
55 0x00, 0x78, 0x7f, 0xff, 0xff, 0xf0, 0xf0, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
56 0x00, 0x7c, 0x1f, 0xff, 0xff, 0xc1, 0xf0, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
57 0x00, 0x3c, 0x00, 0x00, 0x00, 0x03, 0xe0, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
58 0x00, 0x3f, 0x00, 0x00, 0x00, 0x0f, 0xc0, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
59 0x00, 0x1f, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
60 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0x80, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
61 0x00, 0x07, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
62 0x00, 0x01, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
63 0x00, 0x00, 0x3e, 0x1f, 0x83, 0xe0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
64 0x00, 0x00, 0x3e, 0x0f, 0x83, 0xe0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
65 0x00, 0x00, 0x3e, 0x0f, 0x83, 0xe0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
66 0x00, 0x00, 0x3e, 0x0f, 0x83, 0xe0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
67 0x00, 0x00, 0x3e, 0x0f, 0x83, 0xe0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
68 0x00, 0x00, 0x3e, 0x0f, 0x83, 0xe0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
69 0x00, 0x00, 0x3c, 0x0f, 0x83, 0xe0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
70 0x00, 0x00, 0x3c, 0x0f, 0x01, 0xc0, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
71 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
72 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff
73 };
74 const char pieces_S_l[2][2][4] = {{
75 {0, 0, 1, 1}, {0, 1, 1, 2}
76 },
77 {
78 {0, 1, 1, 2}, {1, 1, 0, 0}
79 }};
80 const char pieces_S_r[2][2][4]{{
81 {1, 1, 0, 0}, {0, 1, 1, 2}
82 },
83 {
84 {0, 1, 1, 2}, {0, 0, 1, 1}
85 }};
86 const char pieces_L_l[4][2][4] = {{
87 {0, 0, 0, 1}, {0, 1, 2, 2}
88 },
89 {
90 {0, 1, 2, 2}, {1, 1, 1, 0}
91 },
92 {
93 {0, 1, 1, 1}, {0, 0, 1, 2}
94 },
95 {
96 {0, 0, 1, 2}, {1, 0, 0, 0}
97 }};
98 const char pieces_Sq[1][2][4] = {{
99 {0, 1, 0, 1}, {0, 0, 1, 1}
100 }};
101 const char pieces_T[4][2][4] = {{
102 {0, 0, 1, 0},{0, 1, 1, 2}
103 },
104 {
105 {0, 1, 1, 2},{1, 0, 1, 1}
106 },
107 {
108 {1, 0, 1, 1},{0, 1, 1, 2}
109 },
110 {
111 {0, 1, 1, 2},{0, 0, 1, 0}
112 }};
113 const char pieces_l[2][2][4] = {{
114 {0, 1, 2, 3}, {0, 0, 0, 0}
115 },
116 {
117 {0, 0, 0, 0}, {0, 1, 2, 3}
118 }};
119 const short MARGIN_TOP = 19;
120 const short MARGIN_LEFT = 3;
121 const short SIZE = 5;
122 const short TYPES = 6;
123 #define SPEAKER_PIN 3
124 const int MELODY_LENGTH = 10;
125 const int MELODY_NOTES[MELODY_LENGTH] = {262, 294, 330, 262};
126 const int MELODY_DURATIONS[MELODY_LENGTH] = {500, 500, 500, 500};
127 int click[] = { 1047 };
128 int click_duration[] = { 100 };
129 int erase[] = { 2093 };
130 int erase_duration[] = { 100 };
131 word currentType, nextType, rotation;
132 short pieceX, pieceY;
133 short piece[2][4];
134 int interval = 20, score;
135 long timer, delayer;
136 boolean grid[10][18];
137 boolean b1, b2, b3;
138 int left=9;
139 int right=11;
140 int change=10;
141 int speed=12;
142 void checkLines(){
143 boolean full;
144 for(short y = 17; y >= 0; y--){
145 full = true;
146 for(short x = 0; x < 10; x++){
147 full = full && grid[x][y];
148 }
149 if(full){
150 breakLine(y);
151 y++;
152 }
153 }
154 }
155 void breakLine(short line){
156 tone(SPEAKER_PIN, erase[0], 1000 / erase_duration[0]);
157 delay(100);
158 noTone(SPEAKER_PIN);
159 for(short y = line; y >= 0; y--){
160 for(short x = 0; x < 10; x++){
161 grid[x][y] = grid[x][y-1];
162 }
163 }
164 for(short x = 0; x < 10; x++){
165 grid[x][0] = 0;
166 }
167 display.invertDisplay(true);
168 delay(50);
169 display.invertDisplay(false);
170 score += 10;
171 }
172 void refresh(){
173 display.clearDisplay();
174 drawLayout();
175 drawGrid();
176 drawPiece(currentType, 0, pieceX, pieceY);
177 display.display();
178 }
179 void drawGrid(){
180 for(short x = 0; x < 10; x++)
181 for(short y = 0; y < 18; y++)
182 if(grid[x][y])
183 display.fillRect(MARGIN_LEFT + (SIZE + 1)*x, MARGIN_TOP + (SIZE + 1)*y, SIZE, SIZE, WHITE);
184 }
185 boolean nextHorizontalCollision(short piece[2][4], int amount){
186 for(short i = 0; i < 4; i++){
187 short newX = pieceX + piece[0][i] + amount;
188 if(newX > 9 || newX < 0 || grid[newX][pieceY + piece[1][i]])
189 return true;
190 }
191 return false;
192 }
193 boolean nextCollision(){
194 for(short i = 0; i < 4; i++){
195 short y = pieceY + piece[1][i] + 1;
196 short x = pieceX + piece[0][i];
197 if(y > 17 || grid[x][y])
198 return true;
199 }
200 return false;
201 }
202 void generate(){
203 currentType = nextType;
204 nextType = random(TYPES);
205 if(currentType != 5)
206 pieceX = random(9);
207 else
208 pieceX = random(7);
209 pieceY = 0;
210 rotation = 0;
211 copyPiece(piece, currentType, rotation);
212 }
213 void drawPiece(short type, short rotation, short x, short y){
214 for(short i = 0; i < 4; i++)
215 display.fillRect(MARGIN_LEFT + (SIZE + 1)*(x + piece[0][i]), MARGIN_TOP + (SIZE + 1)*(y + piece[1][i]), SIZE, SIZE, WHITE);
216 }
217 void drawNextPiece(){
218 short nPiece[2][4];
219 copyPiece(nPiece, nextType, 0);
220 for(short i = 0; i < 4; i++)
221 display.fillRect(50 + 3*nPiece[0][i], 4 + 3*nPiece[1][i], 2, 2, WHITE);
222 }
223 void copyPiece(short piece[2][4], short type, short rotation){
224 switch(type){
225 case 0: //L_l
226 for(short i = 0; i < 4; i++){
227 piece[0][i] = pieces_L_l[rotation][0][i];
228 piece[1][i] = pieces_L_l[rotation][1][i];
229 }
230 break;
231 case 1: //S_l
232 for(short i = 0; i < 4; i++){
233 piece[0][i] = pieces_S_l[rotation][0][i];
234 piece[1][i] = pieces_S_l[rotation][1][i];
235 }
236 break;
237 case 2: //S_r
238 for(short i = 0; i < 4; i++){
239 piece[0][i] = pieces_S_r[rotation][0][i];
240 piece[1][i] = pieces_S_r[rotation][1][i];
241 }
242 break;
243 case 3: //Sq
244 for(short i = 0; i < 4; i++){
245 piece[0][i] = pieces_Sq[0][0][i];
246 piece[1][i] = pieces_Sq[0][1][i];
247 }
248 break;
249 case 4: //T
250 for(short i = 0; i < 4; i++){
251 piece[0][i] = pieces_T[rotation][0][i];
252 piece[1][i] = pieces_T[rotation][1][i];
253 }
254 break;
255 case 5: //l
256 for(short i = 0; i < 4; i++){
257 piece[0][i] = pieces_l[rotation][0][i];
258 piece[1][i] = pieces_l[rotation][1][i];
259 }
260 break;
261 }
262 }
263 short getMaxRotation(short type){
264 if(type == 1 || type == 2 || type == 5)
265 return 2;
266 else if(type == 0 || type == 4)
267 return 4;
268 else if(type == 3)
269 return 1;
270 else
271 return 0;
272 }
273 boolean canRotate(short rotation){
274 short piece[2][4];
275 copyPiece(piece, currentType, rotation);
276 return !nextHorizontalCollision(piece, 0);
277 }
278 void drawLayout(){
279 display.drawLine(0, 15, WIDTH, 15, WHITE);
280 display.drawRect(0, 0, WIDTH, HEIGHT, WHITE);
281 drawNextPiece();
282 char text[6];
283 itoa(score, text, 10);
284 drawText(text, getNumberLength(score), 7, 4);
285 }
286 short getNumberLength(int n){
287 short counter = 1;
288 while(n >= 10){
289 n /= 10;
290 counter++;
291 }
292 return counter;
293 }
294 void drawText(char text[], short length, int x, int y){
295 display.setTextSize(1); // Normal 1:1 pixel scale
296 display.setTextColor(WHITE); // Draw white text
297 display.setCursor(x, y); // Start at top-left corner
298 display.cp437(true); // Use full 256 char 'Code Page 437' font
299 for(short i = 0; i < length; i++)
300 display.write(text[i]);
301 }
302 void setup() {
303 pinMode(left, INPUT_PULLUP);
304 pinMode(right, INPUT_PULLUP);
305 pinMode(change, INPUT_PULLUP);
306 pinMode(speed, INPUT_PULLUP);
307 pinMode(SPEAKER_PIN, OUTPUT);
308 Serial.begin(9600);
309 // SSD1306_SWITCHCAPVCC = generate display voltage from 3.3V internally
310 if(!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) { // Address 0x3D for 128x64
311 Serial.println(F("SSD1306 allocation failed"));
312 for(;;); // Don't proceed, loop forever
313 }
314 display.setRotation(1);
315 display.clearDisplay();
316 display.drawBitmap(3, 23, mantex_logo, 64, 82, WHITE);
317 display.display();
318 delay(2000);
319 display.clearDisplay();
320 drawLayout();
321 display.display();
322 randomSeed(analogRead(0));
323 nextType = random(TYPES);
324 generate();
325 timer = millis();
326 }
327 void loop() {
328 if(millis() - timer > interval){
329 checkLines();
330 refresh();
331 if(nextCollision()){
332 for(short i = 0; i < 4; i++)
333 grid[pieceX + piece[0][i]][pieceY + piece[1][i]] = 1;
334 generate();
335 }else
336 pieceY++;
337 timer = millis();
338 }
339 if(!digitalRead(left)){
340 tone(SPEAKER_PIN, click[0], 1000 / click_duration[0]);
341 delay(100);
342 noTone(SPEAKER_PIN);
343 if(b1){
344 if(!nextHorizontalCollision(piece, -1)){
345 pieceX--;
346 refresh();
347 }
348 b1 = false;
349 }
350 }else{
351 b1 = true;
352 }
353 if(!digitalRead(right)){
354 tone(SPEAKER_PIN, click[0], 1000 / click_duration[0]);
355 delay(100);
356 noTone(SPEAKER_PIN);
357 if(b2){
358 if(!nextHorizontalCollision(piece, 1)){
359 pieceX++;
360 refresh();
361 }
362 b2 = false;
363 }
364 }else{
365 b2 = true;
366 }
367 if(!digitalRead(speed)){
368 interval = 20;
369 }else{
370 interval = 400;
371 }
372 if(!digitalRead(change)){
373 tone(SPEAKER_PIN, click[0], 1000 / click_duration[0]);
374 delay(100);
375 noTone(SPEAKER_PIN);
376 if(b3){
377 if(rotation == getMaxRotation(currentType) - 1 && canRotate(0)){
378 rotation = 0;
379 }else if(canRotate(rotation + 1)){
380 rotation++;
381 }
382 copyPiece(piece, currentType, rotation);
383 refresh();
384 b3 = false;
385 delayer = millis();
386 }
387 } else if(millis() - delayer > 50){
388 b3 = true;
389 }}
reste à faire
une boite en decoupe laser ou en 3D
